OBD Auto Doctor for Windows, Mac OS X and Linux was previously updated to version 2.0. The new version contains a lot improvements. Some of them are visible to you but there are several improvements done under the hood, too. The latest version has now better support for the new Windows 8.1 and Mac OS X 10.10 Yosemite operating systems.

Exporting capabilities

One of the additions to the software was the data export capabilities. You will be now able to export Diagnostic Trouble Codes and Freeze Frame data to a text file. You can then easily share the file, or archive it for documenting the history of your car.

Moreover, you can export the sensor live data to a *.csv file. The csv file can be opened with spreadsheet software such as Microsoft Excel, Google Sheets or LibreOffice Calc. You can record a whole drive cycle and review the results afterward to detect some abnormalities with the sensors of your car. You can even draw a custom graph with these external tools from the data you collected with OBD Auto Doctor.

We did an example drive with 2014 Audi A3 1.4 TFSI and recorded the car data during it. The granularity of the data is rather coarse because we recorded 28 sensors simultaneously. Dropping the amount of different sensors will improve the granularity significantly. That’s because it leaves more time to update the interesting sensors more frequently.

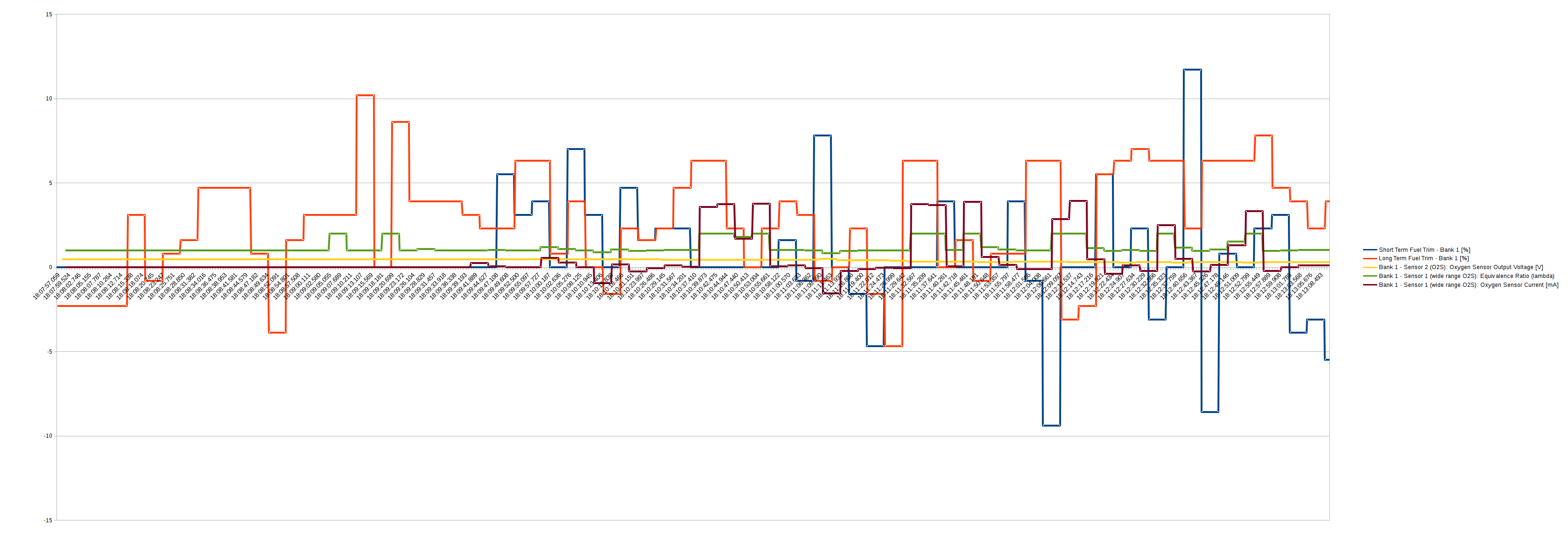

OBD2 data graph exported from LibreOffice Calc

Click the image for full size.

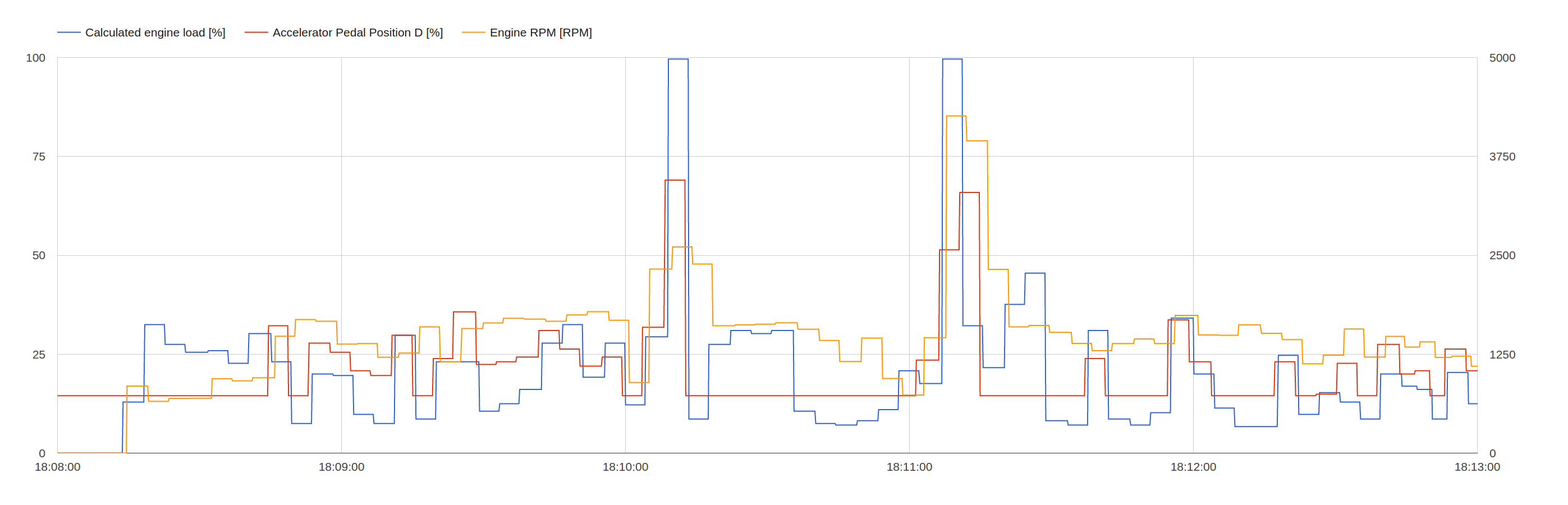

OBD2 data graph exported from Google Sheets

Click the image for full size.

Other new features

In addition to the export functions, the latest version added support for 16 new OBD2 parameters. It’s also now possible to graph more than one sensor or parameter simultaneously with the oscilloscope. Last, OBD Auto Doctor user interface was translated to Polish.

You can download the latest version of OBD Auto Doctor from the download page.
